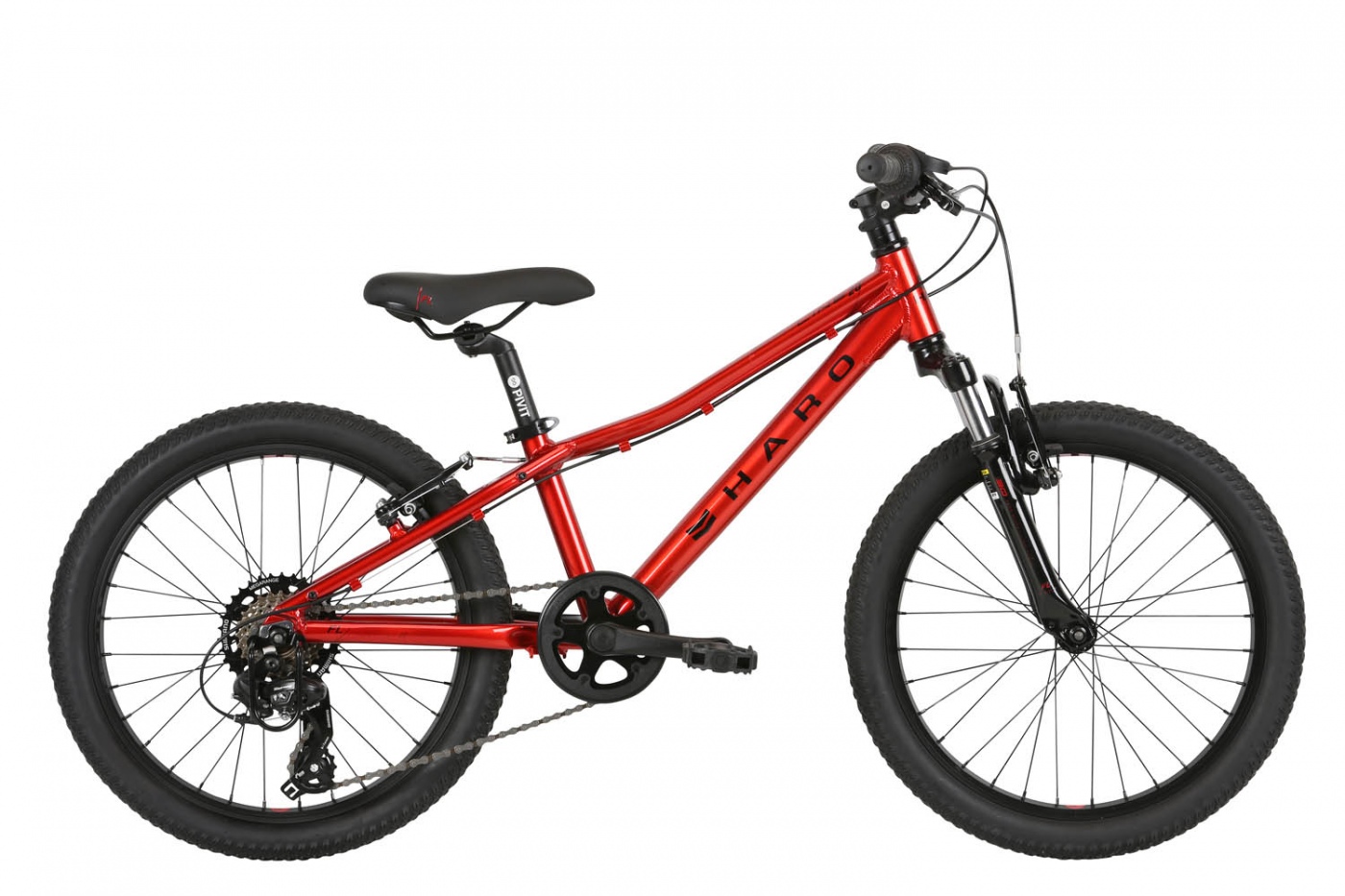

Thanks to its lower stand-over height frame and 20″ wheelset, the Flightline 20 is perfect for adventurous youngsters who love to ride but aren’t quite ready for the larger 24″ or 26″ wheel-sizes yet. The FL 20 features Haro’s low profile X6 alloy frame with a ton of stand-over clearance. Bumps don’t stand a chance thanks to its suspension fork with 35mm of travel. The FL 20 features a new 1×7-speed drive-train with a single chainring and Revo shifter to make it easier to switch gears.
Features
Flightline X6 Series aluminum frame
HL 410E suspension fork w/ 30mm travel
1-1/8″ Threadless headset
Alloy 32T crankset w/ double chainguard
Sealed cartridge BB set
New Shimano Tourney TY-200 rear derailleur
New Revo 7-spd shifter
New Tourney TZ510 7-spd 14-34T freewheel
Aluminum single wall 20″ rims w/ 32h hubs
Specifications
FRAMESET
Frame Haro Flightline FL3G 6000 series Aluminum | Low stand-over height | V-Brake bosses
Fork HL 410E 30mm travel
Frame Shock N/A
Colors Matte Black / Metallic Blue, Red / Black, Magenta / White
DRIVETRAIN
Cranks Aluminum 32T double chain guard | 5″ / 127mm
Pedals MTB nylon body
Chain KMC Z7 1/2″*3/32″
Bottom Bracket Sealed cartridge
Front Derailleur N/A
Rear Derailleur New Shimano Tourney TY-200
Derailleur Shifter Shimano Revo 7-spd
Freewheel/Cassette New Shimano Tourney MF-TZ510 7-spd freewheel 14-34T
WHEELS
Tires H-5129 | 20″ X2.0″
Wheels/Rims Aluminum single wall 20″
Hubs Pivit steel 32h nuts
BRAKING SYSTEM
Brakes Promax TX-121 V-Brakes
Brake Levers Promax BL-81G | Short reach
OTHER COMPONENTS
Grips/Tape Haro MTB
Handlebar Pivit Aluminum 25mm riser bar | 31.8mm O.D.
Stem Pivit melt forged stem 4 bolts | 31.8mm bar bore
Headset 1-1/8″ threadless steel cups | loose ball | Nylon Top
Saddle Haro Flightline Jr
Seat Post Pivit Aluminum micro adjust 27.2mm
Seat Clamp Pivit Aluminum 31.8mm quick release
